Project 58!! (Image intense)

[Maxx]

Next I mounted up the Power Centers and hung up my Sunlight Supply BlueWave IV E ballasts. You can see the back of my new light weight lightbox in the image. I have not mounted the trim on the lightbox, but it will match the stand. The lightbox is just sitting on two 2x4's to keep it off the top of the tank. The 2x4's also give me a good frame of reference for the lowest I want my lightbox to hang.

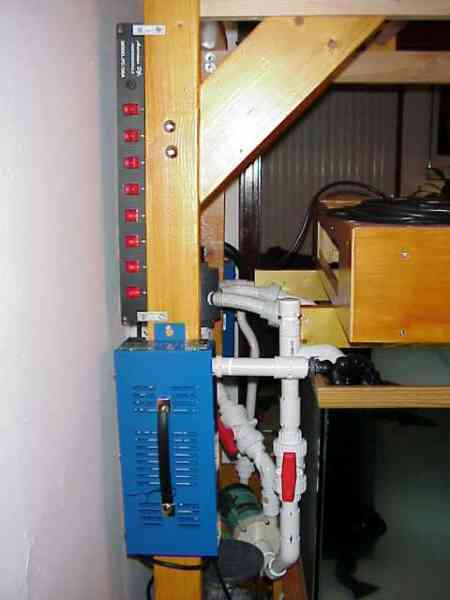

Here is a close up of the Power Center mounted to the upright...I have two and they are mounted in the same place on both sides. The other ballast is in the same place on the other side as well.



Nick

[Maxx]

Still need to:

Stain lightbox support arms, and dowel.
Drill hole for light box cables to mount from the dowel.
Glue trim to the lightbox, (hide them gaps).
drill holes through the sides of the dorm fridge, run the ends of the tubing through the holes, and seal them with insulating foam.
Buy a smaller square-ish shaped bucket or something that will hold 100 feet of tubing and water, (Tubing sits in water inside the bucket for more efficient heat transfer).
Buy a top off resevoir somehwere in the neighborhood of 15-20 gallons.
Add salt mix and aquascape.....
sigh...I'm getting to the finish line!

Nick

[cheeks69]

Lookin awesome Nick

I have the same problem with heat especially in the summertime it got up to about 87* degrees I had to open the canopy and run a large fan to keep it about 84*definitely a problem for oxygen levels in the tank. Right now I'm not concerned since it's cold up here now but once it starts warming up I'm going to buy one of those air condition units you can move around instead of the chiller hope it works.

At MACNA I was talking to Mike aka Mojoreef and he said his Sequence pump was increasing his tank temp by I believe 7* degrees so I thought that was odd for an external pump but Alberto was running into the same problem, so now I'm not surprised the Iwaki is doing the same thing.

[Maxx]

Have made some progress over the last couple of days, which is kinda surprising since Ive been sick as a dog, (if snot were gold, I'd own Fiji right now), and I've been working. Anyway...here we go:

First up was finishing up the lift mechanism for the lightbox. This was kinda kicking my butt for a bit. I'm still not wildly happy with it, but this will do until I come up with a better method.

I was concerned about the handwheel rotating, but not turning the dowel it was connected to, (kinda like when you turn a bolt and it rotates the nut also, so nothing changes...hope that makes sense), I initially thought about connecting the handwheel to the dowel with more than one screw, so it wouldnt spin uselessly. I didnt like that idea, since I was worried about the stress placed on all those screws from the rotational torque. Screws with the head twisted off are a ROYAL PITA to remove.

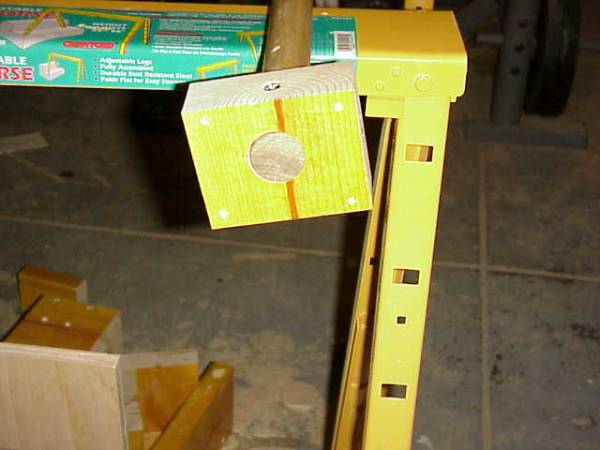

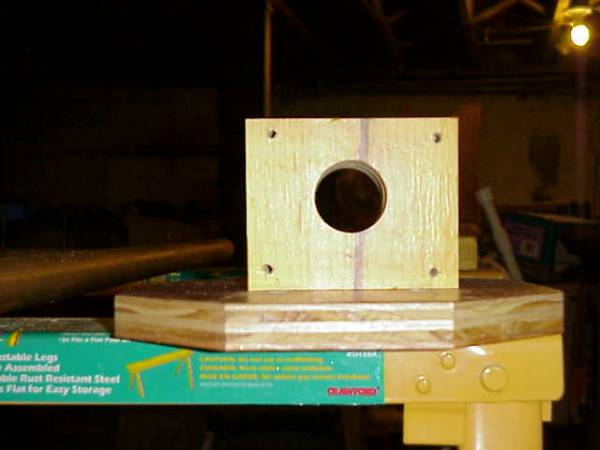

So I figured I'd build a collar that goes around the dowel rod, and connect it with screws to even out the stress placed on them. This is the collar. I had to go out and buy a 1 1/4 hole saw drill bit to get this right.



Even then I screwed it up a couple of times. I initially tried to use some leftover plywood since it was available and stained and sealed.....long story short, the screws inserted through the sides split the wood. I wound up using leftover 2x6 which was stained and sealed and cut it to fit.

You can see the screw on top running through the end grain of the wood here. I used one large screw per side to anchor this to the dowel. I'm sure if I tried hard enough I could rip the collar free of the dowel, but I'd have to work really hard to do that, and in any event that would be more stress than the collar will deal with while over my tank.

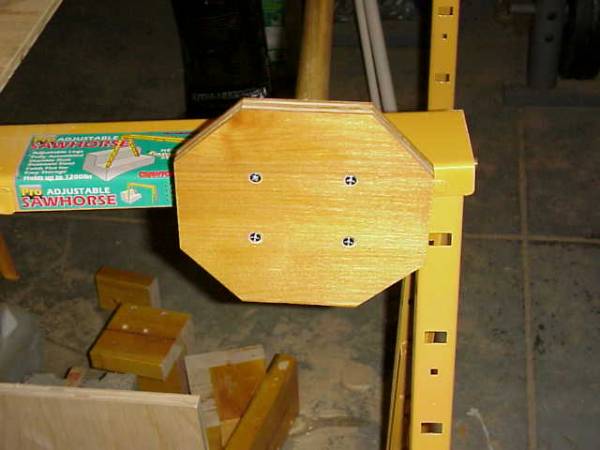

Here is a front shot of the handwheel attahed to the collar and dowel.
Again, I just used some scrap wood left over from the super heavy lightbox and cut it down to the shape it is now.

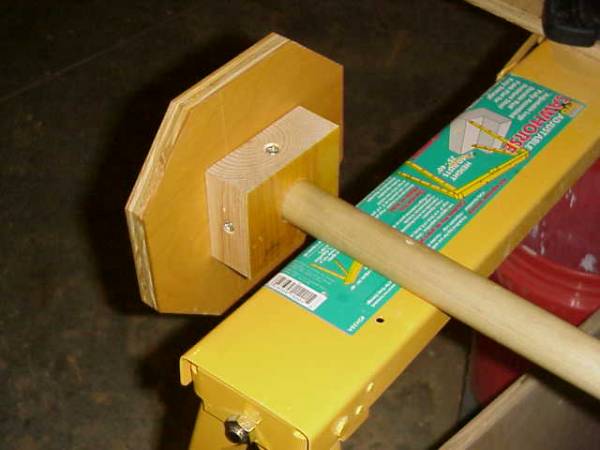

Here's a shot of the rear of the handwheel mounted to the collar and dowel.



Nick

[Maxx]

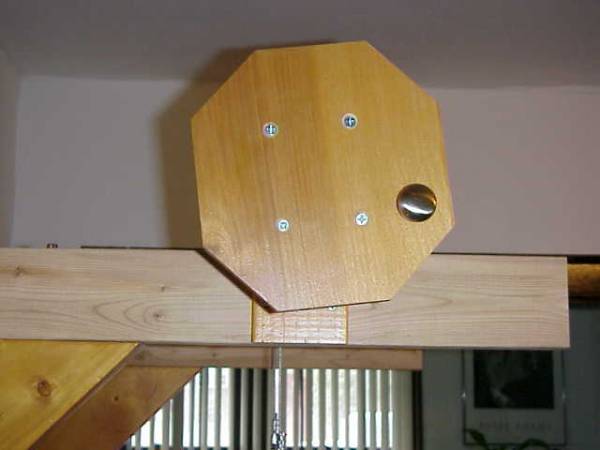

Here is a pic of the handwheel and everything mounted over the tank. I added this little knob planning on using it to raise and lower the lightbox.....doesnt work to well for that though. The knob is too small, ( I couldnt find a long straight handled knob/handle to use for this). So I wind up grabbing the sides of the handwheel and raising/lowering the lightbox that way. Rocio makes fun of the little knob....I dont care, I'm secure enough in my manhood have a little knob on my handwheel. I'm not compensating for anything...



Here are two photos of the cotter pins I bought to keep the dowel from sliding out of the brackets and causing my lightbox to come crashing down.
Found em at Home Depot for 3 bucks each. I use two, one on either end so the dowel cant move very far.

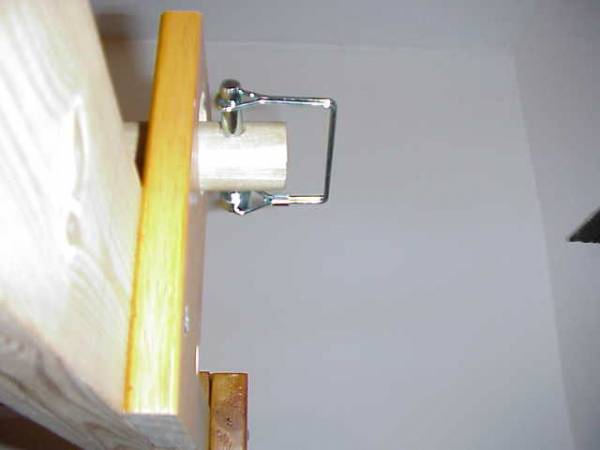

Here is the cotter pin with the safety clip closed.

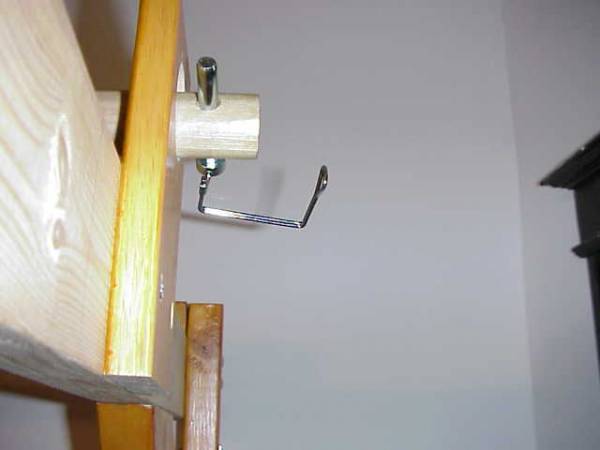

Here it is with the safety clip open. You just pull it over the end of the pin...kinda tough, so it wont happen accidently.



Nick

[Maxx]

This part kept me thinking for a bit.....
I had difficulty finding an appropriate method of keeping the lightbox raised at whatever height I wanted. Basically I needed to keep the dowel from moving after I raised/lowered the lightbox to the desired height. This is what I settled on:

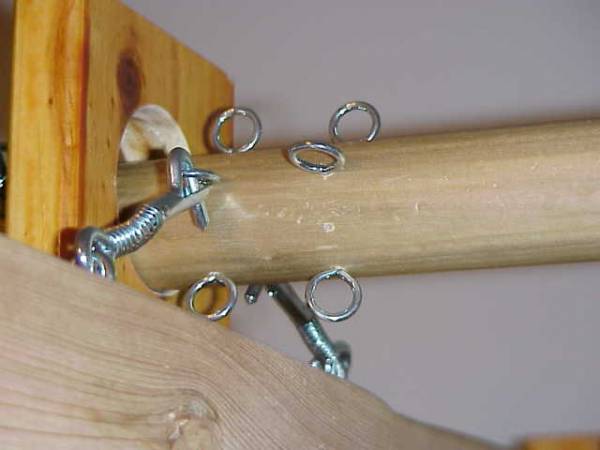

These are two hook and eye latches with spring clips that keep them from accidently slipping of the eye bolt. I use one on each side. There are 4 eyebolts circling the dowel, so I can raise/lower the lightbox and lock it into almost any height. I have two sets of eyebolts shown here in these pics cause I screwed up the first placement and had to redo it....some people who have read this thread actually have the crazy impression that I'm some DIY super genius and get all this right on the first try...I WISH THAT WAS TRUE!!! This is just one more way of showing I'm human and make mistakes. So anyione who thinks this sort of thing is too difficult, thats crap. Cause if I can do this, anyone (except maybe my dad.....) can do it. Ya just gotta be willing to try.

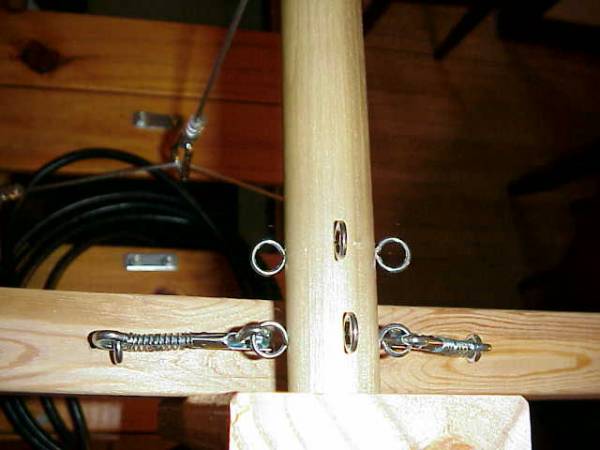

Top down shot of the locking mechanism, (LOL...Its not really a mechanism, just makes me sound smarter...anybody impressed?????? Hello.....Hello...is this thing on????)



Nick

[Maxx]

The lightbox is suspended with 3/32" diameter vinyl wrapped cable which actually increases the outer diamter of the cable to 1/8". I bought it at Home Depot along with the aluminum cable ferrules and stops. Basically you run the cable through one side of the ferrule, make a loop, and run the other end through the other side of the ferrule. Then you use a swaging tool to crimp the ferrule down and secure the cable. After this is done, the cable will not move. Its important to beg, borrow, or buy a swaging tool to do this. I almost gave myself the world's first simultaneous hernia and brain aneurysm trying to crimp the ferrules and stops with a pair of pliers. As soon as my camera battery is charged up again, I will take pics of the swaging tool so people can see what it looks like.
The stops are exactly what they sound like. They stop the cable from pulling though whatever they are run through. I need to take a close up pic of the stops.....

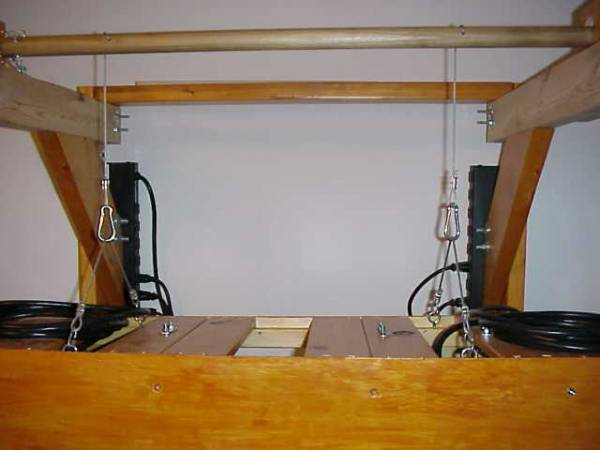

Here is a general view of the cables connected to the lightbox and the dowel.

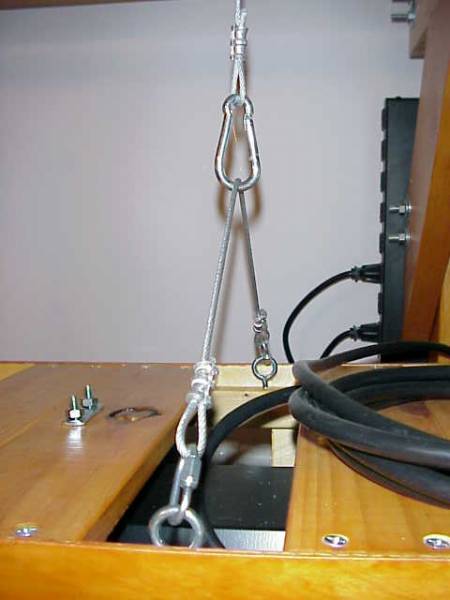

Here is a close up of the cables and the quick disconnect clips I'm using.



Starting at the top of the above pic....
You can see the cable looped through the ferrule, (after being swaged...much smaller beforehand) and connecting to the quick disconnect clamp. The top cable is running through the dowel. The quick disconnect clip is basically a D rig type clip...that uh, isnt shaped like a D....so I guess its really a snap clip. But its purpose is to allow me to be able to separate the lightbox from the dowel for any sort of reason.
The snap clip is connected to the second cable. This cable is connected to two larger eye screws connected directly to the lightbox frame. There are two locking links that connect the cable to the eye screws. Locking links is not the correct term for them, but I cant remember the right one...sorry.

You can see the cables from my Reef Optix 3 reflectors coiled on top of the lightbox in this photo. They will not be like that when this is all said and done.
They will run up and around the lightbox support arms when I finally get off the computer and stain and seal them.
Nick

[Maxx]

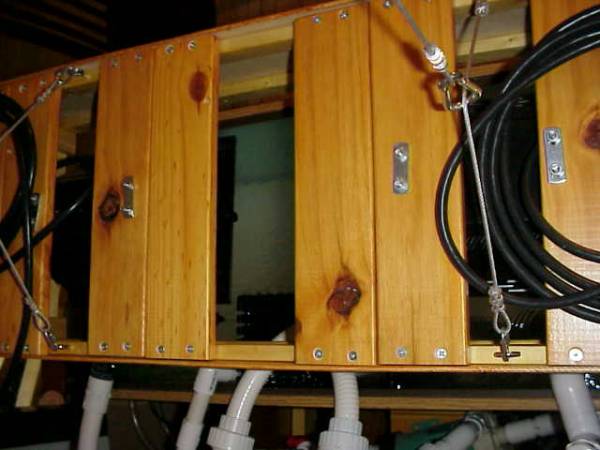

Here is a top down photo of the lightbox. This shows the spaces between the top braces. The middle brace has a 4 inch space, the two side spaces are 3 1/2 inches wide. This allows for alot of natural heat venting so I dont need fans to move air into the box. The back of the box is very open as well.



Nick

[Maxx]

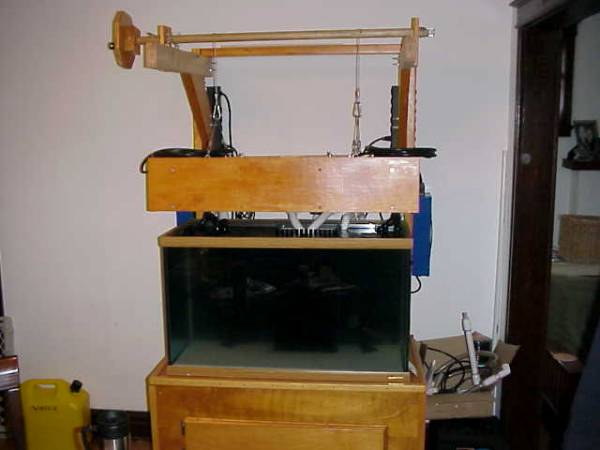

Here is a whole tank shot with the lightbox in a lowered position. The lightbox can actually rest on the top the tank. Here it is raised about 3 inches off the top of the tank. Please excuse the appearance of the lightbox....this is the crappy front panel for test purposes. The good one is finishing up the final coat of water seal, and trim will be put on the corners of the lightbox to match the stand.



Please excuse the box o plumbing parts in the right hand corner. Its sitting on my new chiller.

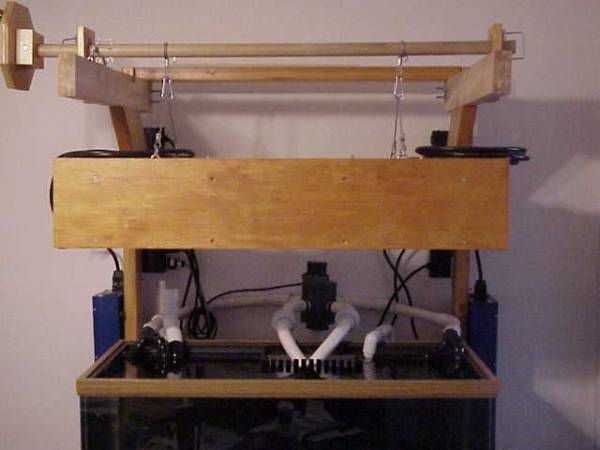

Here is a photo of the lightbox raised to its max height. This places the bottom of the lightbox at about 11.5 inches above the surface of the water, and puts the bottom of the reflectors at a little more 13 inches above the surface of the water.

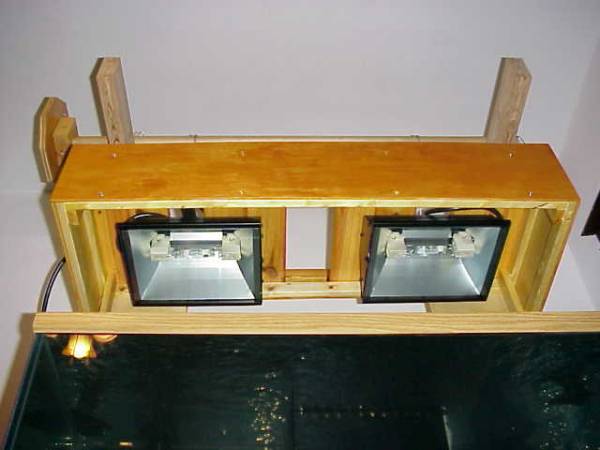

Here is a photo of the lightbox as seen from a worms eye view. I actually had to lie on the floor under the dining room table, (dodging dogs who desperately wanted to lick my face and the camera...sigh....), to take this picture. I'm glad Rocio didnt see me doing that. She already thinks I'm a nutjob, no need to confirm it for her.



I only have the MH's in place right now. I still need to wire up the VHO's...

Nick

[Maxx]

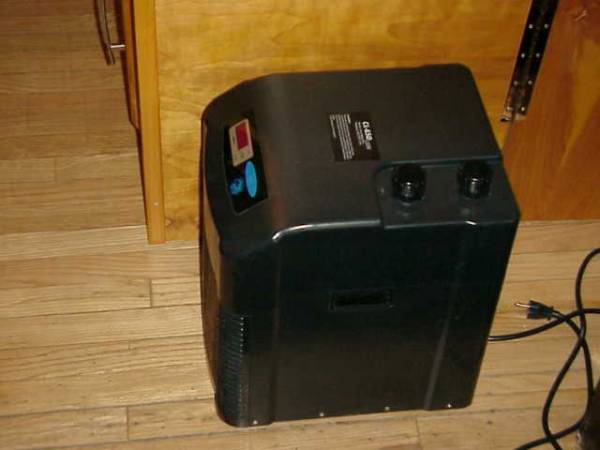

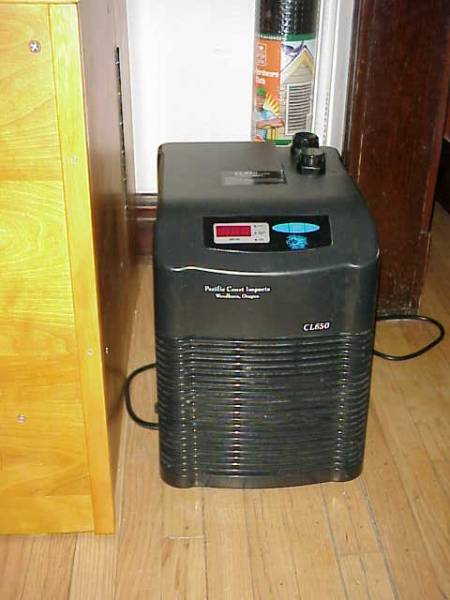

Finally here are photo's of my new chiller. I bought it used from a reefer who was getting out of the hobby. Its a Pacific Coast CL-650 1/4 HP Inline Chiller. Its very quiet, and very capable for what I need. It was bought in May of this year, along with a Mag 950 which the guy threw in all for $400.00. The chiller has 5/8" ports and the same size heat exchanger coil inside, which really chokes down the Mag 9.5...down to about 350 gph. I'm thinking of using an Iwaki MD-40RLT I have lying around. I originally bought the Iwaki 40 MD-RLT to power the ETSS skimmer I bought and didnt use. I think the pressure pump would do better in this application.





Nick

[Gina]

Good find on that chiller! $400 taint bad at all. We looked at a few earlier this summer and $1,000 is alittle more than we can afford right now. Well, not a little....alot!

[strat]

wow, looking great nick. nice find with the chiller. and thanks for all the details and tips, they will come in handy.

strat

[Maxx]

Strat,
Thats the whole point of this thread...Work smarter, not harder. SO if you can figure stuff out from my mistakes...then I was successful!
Nick

[strat]

right on nick. as i was reading thru the thread i was going to mention a tip but by the end you had already gotten a chiller. doh if anyone else reads this that is thinking of doing the small fridger chiller thing, then if theres any spare room in it put containers of water in to freeze or at least be chilled as they will help cut down in electricity costs (so i hear) ie if one was to run an empty freezer and compare it to a freezer full of water bottles the second would maintain its temp far longer than the first........... anyways, just my two cents if that...

strat

[Maxx]

Good point Strat!
The idea behind the fridge was this:
I was going to use a Maxi-jet 1200 to push water through 100 feet of 1/2" ID tubing. Most of this tubing was going to be coiled up and placed inside a bucket, (the largest one I could find that would still fit in the fridge) filled with water. Hopefully with the fridge turned up as high (cold) as possible, the water would eventually freeze (or get real close to freezing) and the tank water would flow through the coiled up tubing, into the bucket (still in the tubing) and the cold/frozen water would suck as much heat from the tank water as possible, before the tank water got returned to the sump.
Does this make sense?
Heat transfer is all your really looking for here. On a bigger tank, the fridge idea wont work...just not enough heat transfer action able to go on....
You wouldnt be worried about the tank water frezzing since the fridge is unable to cool the saltwater down enough to make it freeze.
Thanks for bring this up though Strat!

Nick
